UX1200B BELT PACK WIRELESS SYSTEM

User Manual
UX1200 Series Frequency List

Package Includes:
Specifications:

Package Includes:

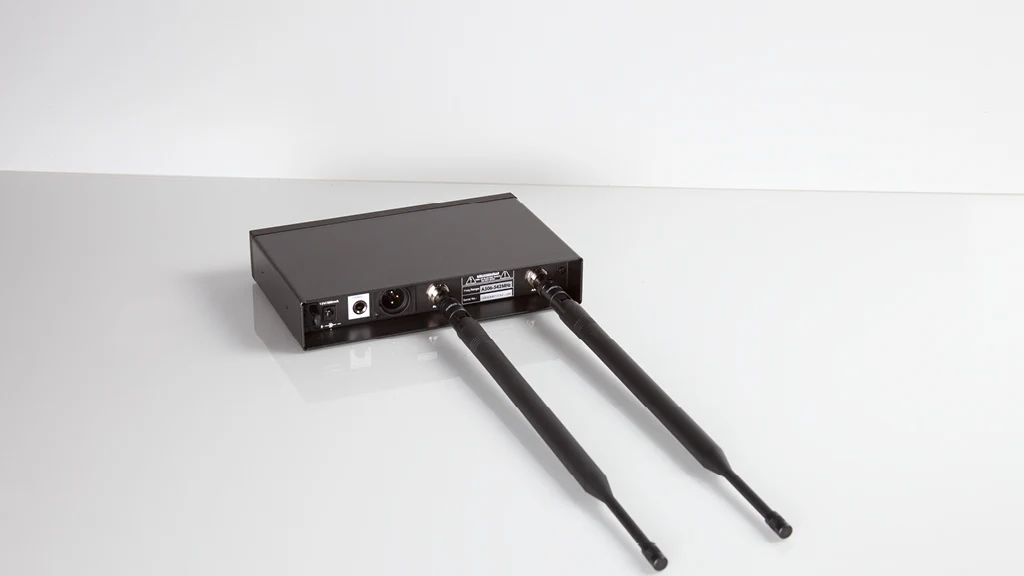

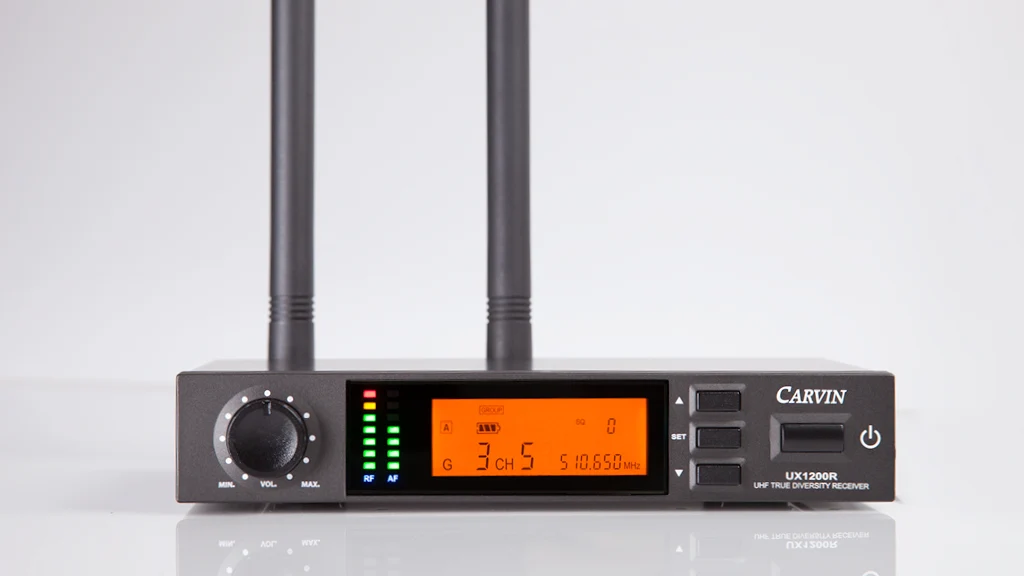

1 UX1200R Wireless Receiver (506 MHz - 542 MHz)
1 UX600B Belt Pack Transmitter

Experience the freedom to move about the stage without the constrains of a wired microphone with the UX1200B Belt Pack Wireless System, which is the ideal solution for theater, live music, and spoken word presentations. One UX1200B can serve as 3 different workhorses in your inventory. Choose different accessories such as the PERFORMER 1T tan over ear headset microphone (also available in black), the UX-LP1 lavalier microphone or the UX-GT 1/4-inch instrument cable.
Simultaneous Channels in Operation : 14
System Type : Analog
Group / Channel Selections : 6 Groups of 23 Channels
Channel selection : Auto and Manual ( In .025MHz increment)
RF Frequency Band : 506MHz - 542MHz
RF Bandwidth : 36MHz
Reception Format : True Diversity, PLL Synthesized
Audio Output : XLR and 1/4-Inch outputs
Receiver Type : Table Top or Rackmount
Warranty: 90 Days
UX600B Belt Pack Transmitter Specifications :
Input Connector: TA4F 4-pin XLR
Frequency Response: 40Hz ‰ÛÒ 18kHz
RF Output Level : 10mW or 50mW

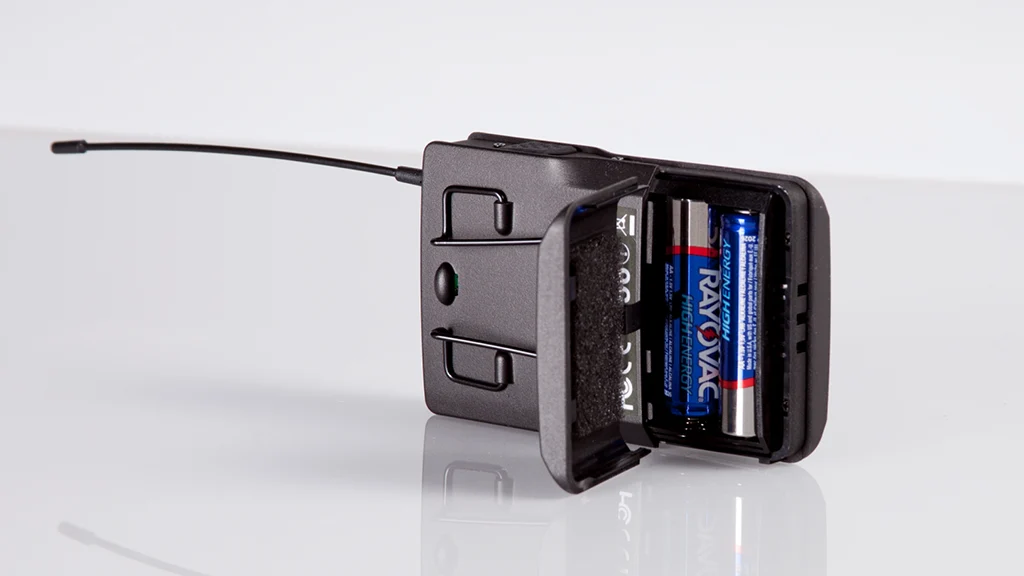

Battery : 2x AA, Not Included
Lighted Mute Indicator: Yes
Backlit Display: Yes
Group and Frequency Selection : Yes, Manual and Auto Scan
Sensitivity Adjust : Yes , -18dB /+12dB (3dB steps)
Attenuation Control : Yes- Helps to manage extreme SPL input
Lock Out : Yes
Microphone Accessories : UX-HM3(Black), UX-HM3T(Tan), UX-LP1, UX-GT
Warranty: 90 Days

Product Information

Shipping & Returns

UX1200B BELT PACK WIRELESS SYSTEM

User Manual
UX1200 Series Frequency List

Package Includes:
Specifications:

Package Includes:

1 UX1200R Wireless Receiver (506 MHz - 542 MHz)
1 UX600B Belt Pack Transmitter

Experience the freedom to move about the stage without the constrains of a wired microphone with the UX1200B Belt Pack Wireless System, which is the ideal solution for theater, live music, and spoken word presentations. One UX1200B can serve as 3 different workhorses in your inventory. Choose different accessories such as the PERFORMER 1T tan over ear headset microphone (also available in black), the UX-LP1 lavalier microphone or the UX-GT 1/4-inch instrument cable.
Simultaneous Channels in Operation : 14
System Type : Analog
Group / Channel Selections : 6 Groups of 23 Channels
Channel selection : Auto and Manual ( In .025MHz increment)
RF Frequency Band : 506MHz - 542MHz
RF Bandwidth : 36MHz
Reception Format : True Diversity, PLL Synthesized
Audio Output : XLR and 1/4-Inch outputs
Receiver Type : Table Top or Rackmount
Warranty: 90 Days
UX600B Belt Pack Transmitter Specifications :
Input Connector: TA4F 4-pin XLR
Frequency Response: 40Hz ‰ÛÒ 18kHz
RF Output Level : 10mW or 50mW
Battery : 2x AA, Not Included
Lighted Mute Indicator: Yes
Backlit Display: Yes
Group and Frequency Selection : Yes, Manual and Auto Scan
Sensitivity Adjust : Yes , -18dB /+12dB (3dB steps)
Attenuation Control : Yes- Helps to manage extreme SPL input
Lock Out : Yes
Microphone Accessories : UX-HM3(Black), UX-HM3T(Tan), UX-LP1, UX-GT
Warranty: 90 Days

$122.15

Original: $349.00

UX1200B BELT PACK WIRELESS SYSTEM—

$349.00

$122.15

Original: $349.00

UX1200B BELT PACK WIRELESS SYSTEM—

$349.00

$122.15

Product Information

Shipping & Returns

Description

User Manual
UX1200 Series Frequency List

Package Includes:
Specifications:

Package Includes:

1 UX1200R Wireless Receiver (506 MHz - 542 MHz)
1 UX600B Belt Pack Transmitter

Experience the freedom to move about the stage without the constrains of a wired microphone with the UX1200B Belt Pack Wireless System, which is the ideal solution for theater, live music, and spoken word presentations. One UX1200B can serve as 3 different workhorses in your inventory. Choose different accessories such as the PERFORMER 1T tan over ear headset microphone (also available in black), the UX-LP1 lavalier microphone or the UX-GT 1/4-inch instrument cable.
Simultaneous Channels in Operation : 14
System Type : Analog
Group / Channel Selections : 6 Groups of 23 Channels
Channel selection : Auto and Manual ( In .025MHz increment)
RF Frequency Band : 506MHz - 542MHz
RF Bandwidth : 36MHz
Reception Format : True Diversity, PLL Synthesized
Audio Output : XLR and 1/4-Inch outputs
Receiver Type : Table Top or Rackmount
Warranty: 90 Days
UX600B Belt Pack Transmitter Specifications :
Input Connector: TA4F 4-pin XLR
Frequency Response: 40Hz ‰ÛÒ 18kHz
RF Output Level : 10mW or 50mW
Battery : 2x AA, Not Included
Lighted Mute Indicator: Yes
Backlit Display: Yes
Group and Frequency Selection : Yes, Manual and Auto Scan
Sensitivity Adjust : Yes , -18dB /+12dB (3dB steps)
Attenuation Control : Yes- Helps to manage extreme SPL input
Lock Out : Yes
Microphone Accessories : UX-HM3(Black), UX-HM3T(Tan), UX-LP1, UX-GT
Warranty: 90 Days
